Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H)
HomeStore

Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H)

Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H)

AT-VM95EN/H

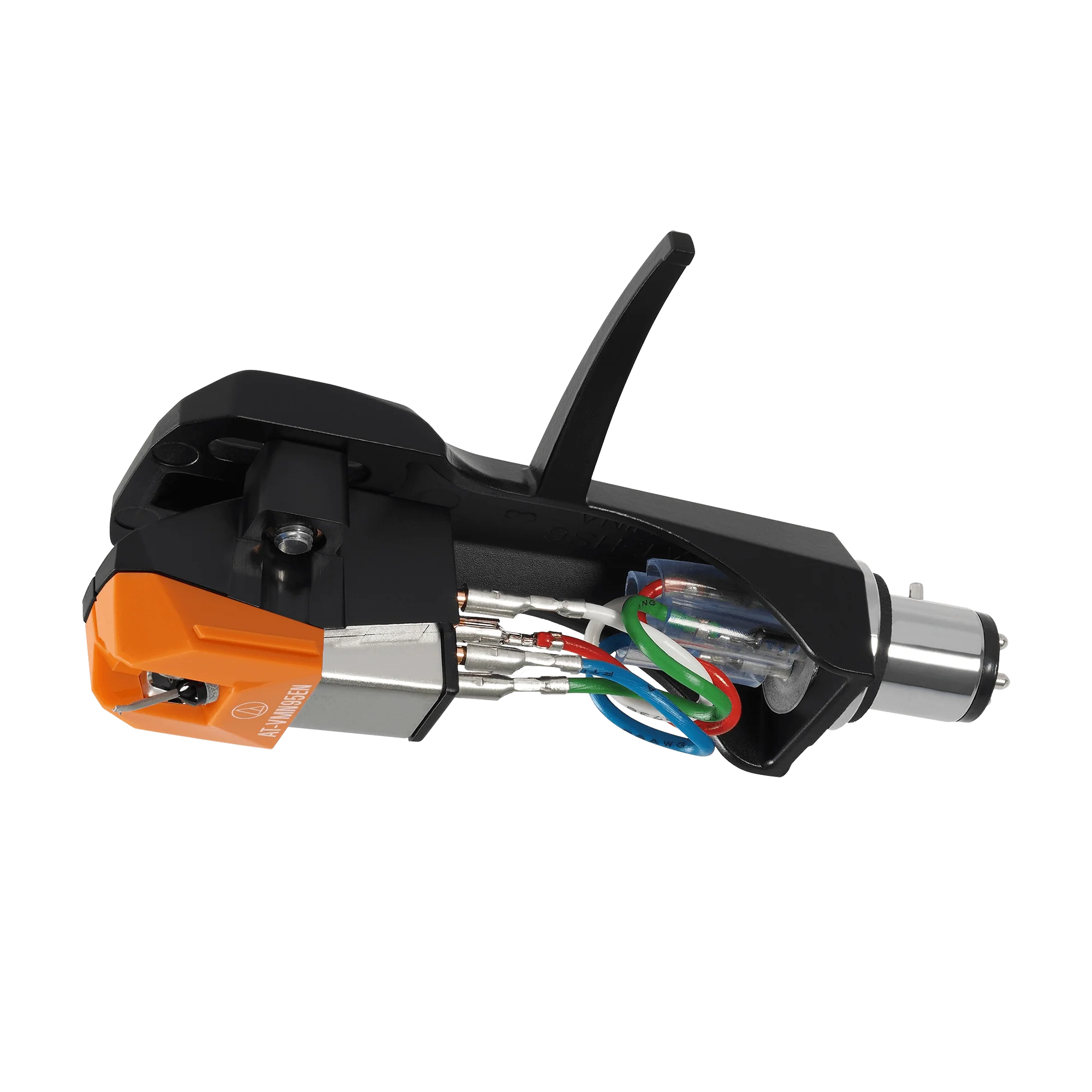

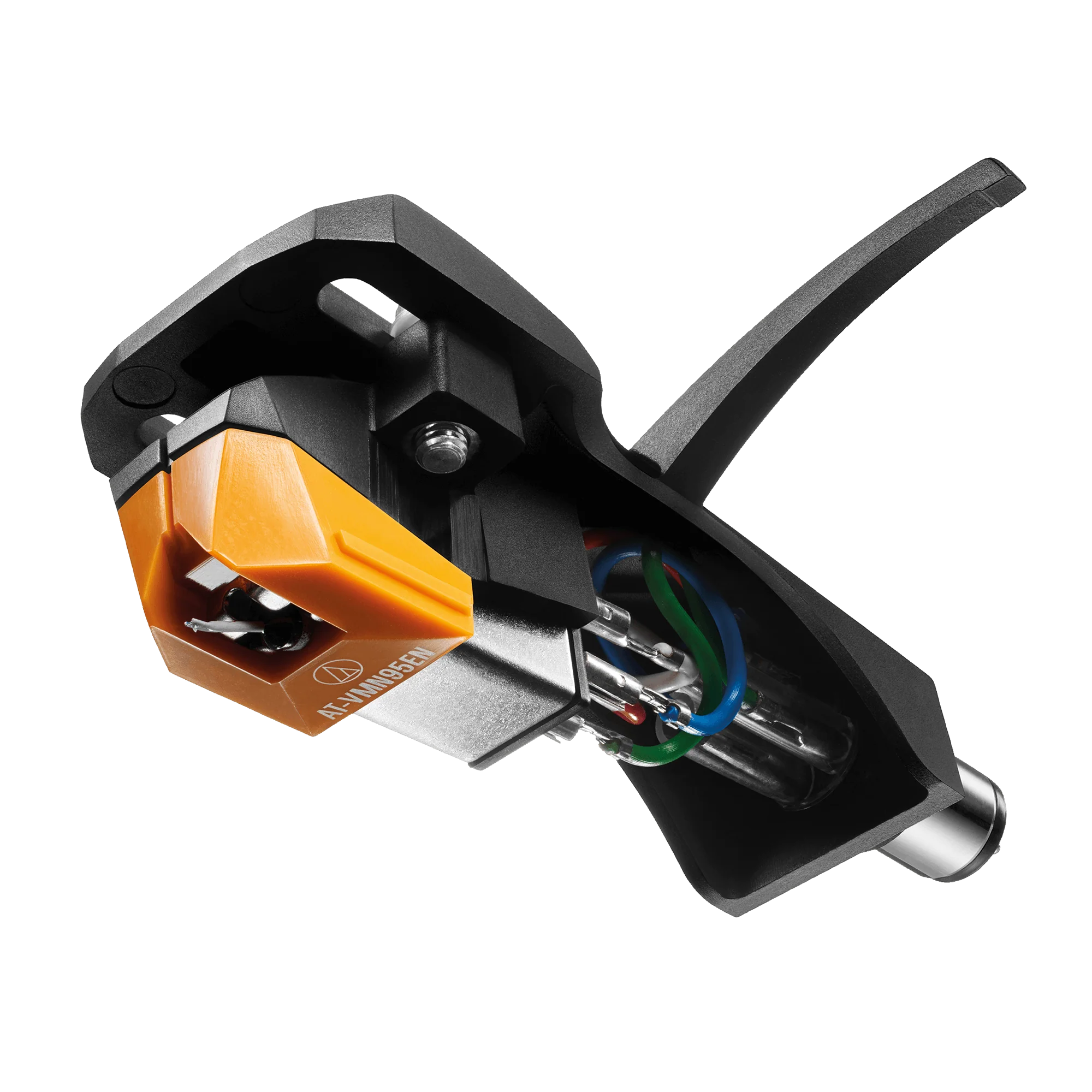

The AT-VM95EN/H combo kit includes the AT-VM95EN dual moving magnet cartridge premounted on the AT-HS6BK headshell.

  • VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
  • Aluminum cantilever
  • Specially wound coils increase output voltage
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
  • Compatible with any AT-VMN95 replacement stylus
  • Universal ½"-mount headshell for 4-pin turntable cartridges



Cartridge & Stylus
Frequency Response 20-23,000 Hz
Channel Separation 22 (dB at 1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 3.3 k ohms (1 kHz)
DC Resistance 485 ohms
Coil Inductance 550 mH (1 kHz)
Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Dimensions Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Model AT-VM95EN/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus AT-VMN95EN
Stylus Size 0.3 x 0.7 mil
Type VM Stereo Dual Magnet
Weight Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
Wire Used for Coil T.P. Copper
$606.00
Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H)—
$606.00

More Images

Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H) - Image 2
Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H) - Image 3
Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H) - Image 4
Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H) - Image 5
Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H) - Image 6

Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95EN/H)

AT-VM95EN/H

The AT-VM95EN/H combo kit includes the AT-VM95EN dual moving magnet cartridge premounted on the AT-HS6BK headshell.

  • VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
  • Aluminum cantilever
  • Specially wound coils increase output voltage
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
  • Compatible with any AT-VMN95 replacement stylus
  • Universal ½"-mount headshell for 4-pin turntable cartridges



Cartridge & Stylus
Frequency Response 20-23,000 Hz
Channel Separation 22 (dB at 1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 3.3 k ohms (1 kHz)
DC Resistance 485 ohms
Coil Inductance 550 mH (1 kHz)
Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Dimensions Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Model AT-VM95EN/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus AT-VMN95EN
Stylus Size 0.3 x 0.7 mil
Type VM Stereo Dual Magnet
Weight Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
Wire Used for Coil T.P. Copper

Product Information

Shipping & Returns

Description

AT-VM95EN/H

The AT-VM95EN/H combo kit includes the AT-VM95EN dual moving magnet cartridge premounted on the AT-HS6BK headshell.

  • VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
  • Aluminum cantilever
  • Specially wound coils increase output voltage
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
  • Compatible with any AT-VMN95 replacement stylus
  • Universal ½"-mount headshell for 4-pin turntable cartridges



Cartridge & Stylus
Frequency Response 20-23,000 Hz
Channel Separation 22 (dB at 1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 3.3 k ohms (1 kHz)
DC Resistance 485 ohms
Coil Inductance 550 mH (1 kHz)
Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Dimensions Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Model AT-VM95EN/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus AT-VMN95EN
Stylus Size 0.3 x 0.7 mil
Type VM Stereo Dual Magnet
Weight Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
Wire Used for Coil T.P. Copper
